CSS Animation – steps() Function Multi-Step Animation

Smooth animations are delightful to look at, but sometimes, you may want to control each keyframe with CSS. Learn how in this step-by-step article.

CSS Animation – steps() Function Multi-Step Animation
Photo by Valeriia Zaletaieva / Unsplash

Introduction

Sometimes, you might prefer smooth animations, while at other times, you might not. This article will teach you how to utilize the CSS steps() function to create multi-step animation sequences.

CSS properties showcased in this article:

  • steps() function
  • animation
  • @keyframes
  • rotate
  • border-radius

Preview

You’ll learn to make two step animations in this article.

  • Square to Circle
  • Multi-Step Shape Animation

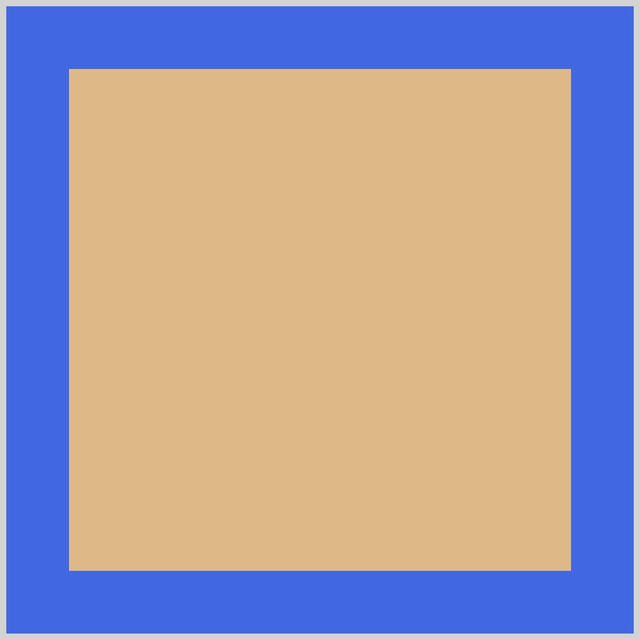

Square to Circle Step Animation
Square to Circle Step Animation

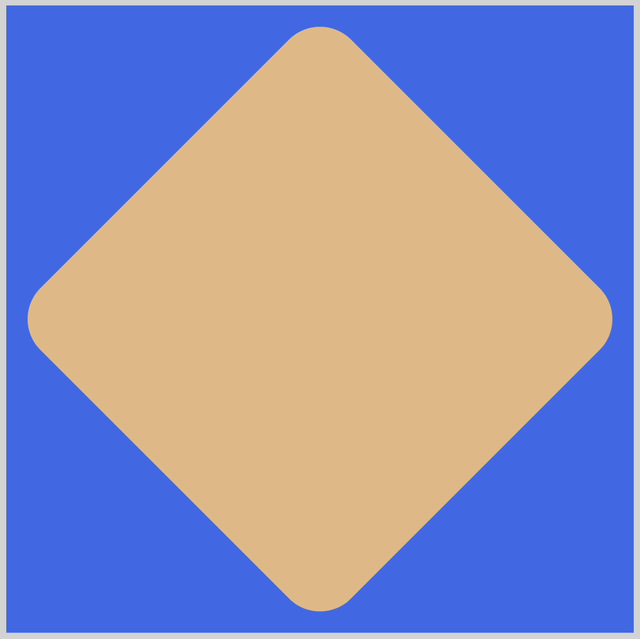

Multi-Step Shape Animation
Multi-Step Shape Animation

Prerequisites

Essential CSS and HTML knowledge will help you understand the concepts and techniques introduced in this article. Jump over to this article if you require an HTML and CSS primer.

We assume that you have set up tools to manipulate CSS. If you haven’t, this article will show you how to set them up.

Please read this article if you’re unfamiliar with CSS animation and the @keyframes at-rule property.

HTML Structure

<div class="container">
  <div class="shape"></div>
</div>
<div class="container">
  <div class="circle-with-steps">
  </div>
</div>

container is the outermost enclosure. It enables the content to be centered and draws a light gray border. The rest of the divs represent each animation sequence.

Keep the HTML structure as is for the animation to display correctly.

Body and Container Div CSS

CSS code for the body and container div.

/* Body and Container Settings */
/* Center shapes */
body {
  margin: 0;
  padding: 0;
  height: 100vh;
  display: flex;
  justify-content: center;
  align-items: center;
  flex-wrap: wrap;
}

/* Set background and border color */
.container {
  width: 500px;
  height: 500px;
  border: 5px solid lightgray;
  background: royalblue;
  position: relative;
  margin: 5px;
  display: flex;
  justify-content: center;
  align-items: center;
}

What is Step Animation

Animation has two main components: the keyframes and the inbetweens, usually referred to as tweens. The keyframes are the significant states or poses of the animation. Tweens are the “filler” drawings between the keyframes, ensuring a smooth transition between keyframes.

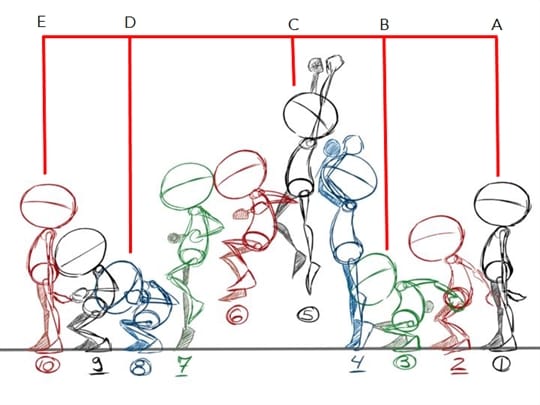

Keyframe and Inbetweens
Keyframe and Inbetweens

Image source

In the above image, the keyframes are indicated A through E, and the rest of the images are tweens. This article explains keyframes and tweens in depth.

CSS Animation — Digital Animation
What is digital animation. Who invented computers, how did it influence animation. Let’s travel through time and find out in this article.

Step animation involves setting up multiple steps in an animation sequence. For instance, if you want to animate an object transforming into different shapes, you can set up the step animation as follows:

  • Start with a square
  • Change the square to a circle
  • Change the circle to an ellipse
  • Change the ellipse to a teardrop
  • End with a teardrop as your final state

By adding multiple steps between your initial and final state, you can create a more engaging and captivating animation.

In the next section, you’ll learn about the CSS steps() function.

CSS steps() Function

The steps() function is part of the CSS animation timing function. It allows precise control over the animation, displaying each step or stop for equal lengths of time.

Regular CSS animation produces a smooth transition between keyframes.

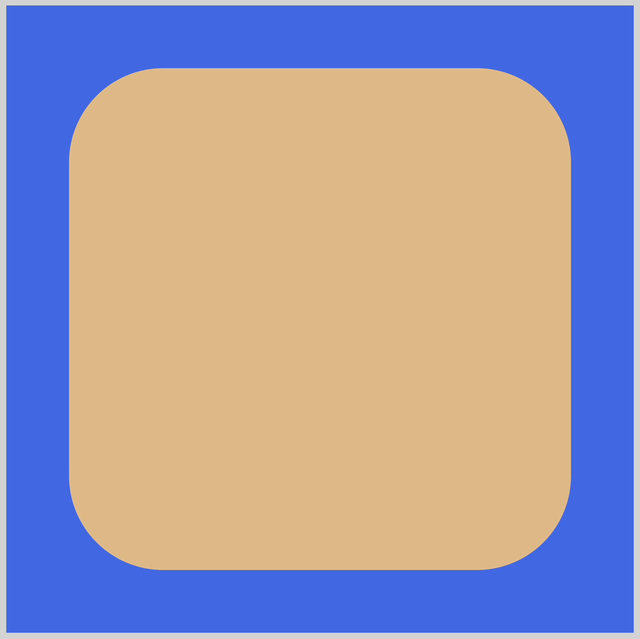

Regular Square to Circle Animation
Regular Square to Circle Animation

If you don't want a smooth transition between keyframes, you can use the steps() function to break up each animation iteration or tween to your preferred timing. For example, if you are creating an analog clock animation, you can use the steps() function to control the second hand of the analog clock so that it will “tick” or jump at set intervals instead of smoothly rotating.

Let’s explore a basic animation using steps().

steps() Basic Animation

In this section, you’ll learn how to animate a square to a circle shape using the CSS steps() function. You will use the CSS border-radius property to round out the square’s corners.

The sample animation will have five steps:

  1. Initial square shape
  2. border-radius at 12.5%
  3. 25%
  4. 37.5
  5. Circle (border-radius at 50%)

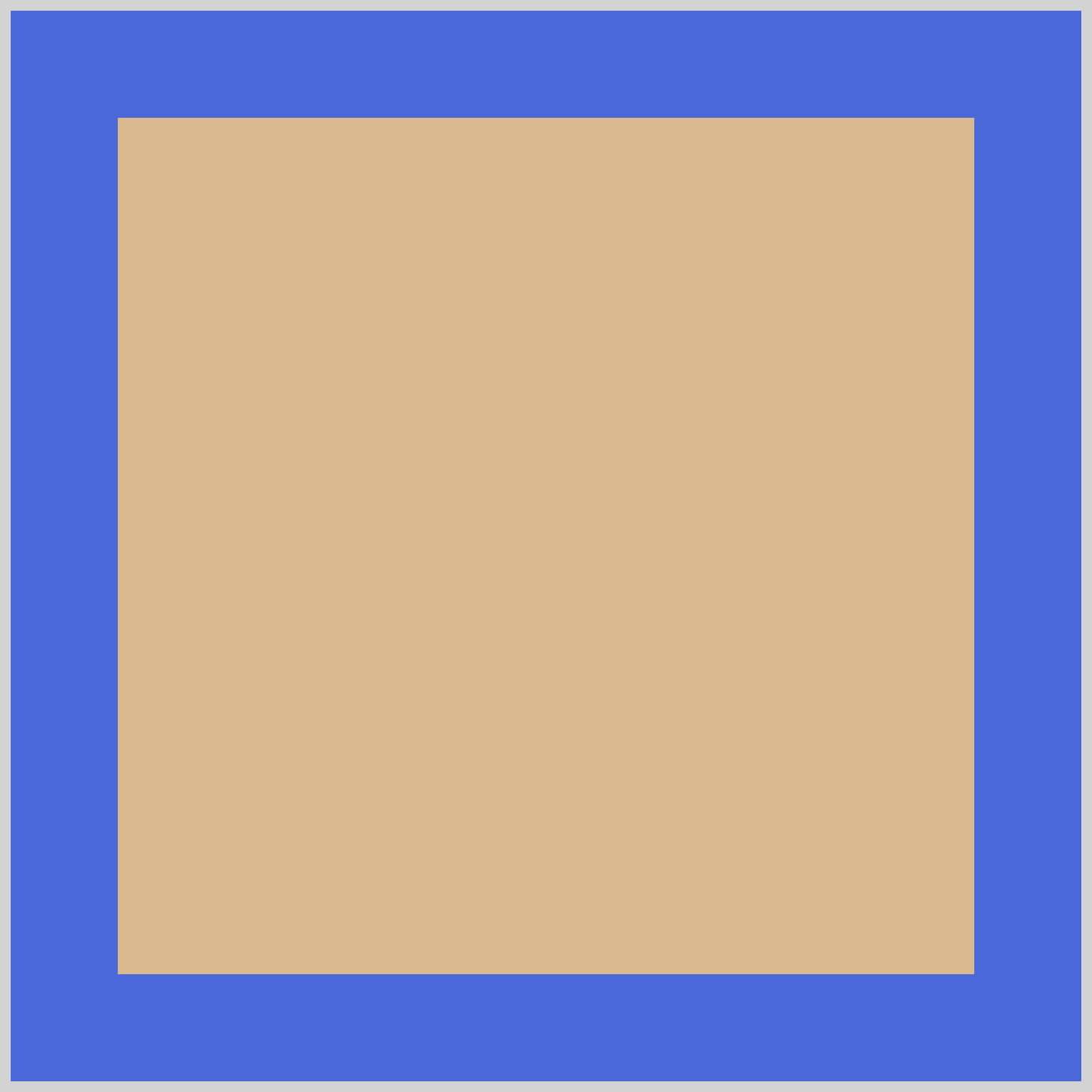

Initial Square Shape
Initial Square Shape
/* Circle with Steps */
.circle-with-steps {
  position: absolute;
  background-color: burlywood;
  width: 400px;
  height: 400px;
}

The square shape will be 400px tall and wide, and its background color will be set to burlywood.

border-radius at 12.5%
border-radius at 12.5%
.circle-with-steps {
  animation: circle-with-steps 3s steps(4) infinite alternate;
}

Let’s break down the animation code:

  • circle-with-steps is the animation name.
  • 3s indicates a three-second animation duration.
  • steps(4) sets the animation step to four steps.
  • infinite loops the animation.
  • alternate reverses the animation direction.

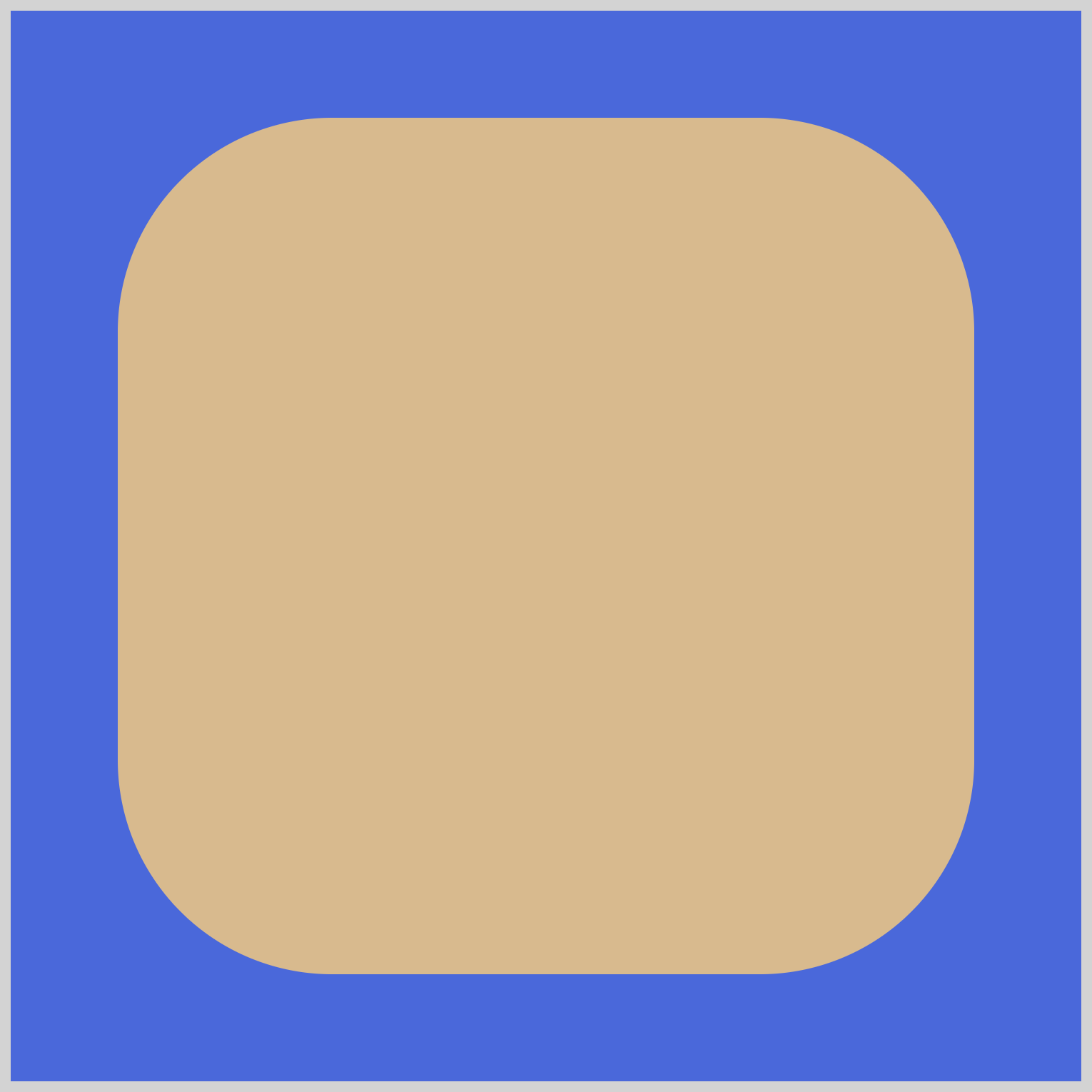

border-radius at 25%
border-radius at 25%

You will use the CSS @keyframes at-rule to control the intermediate steps between border-radius: 0% to border-radius: 50%.

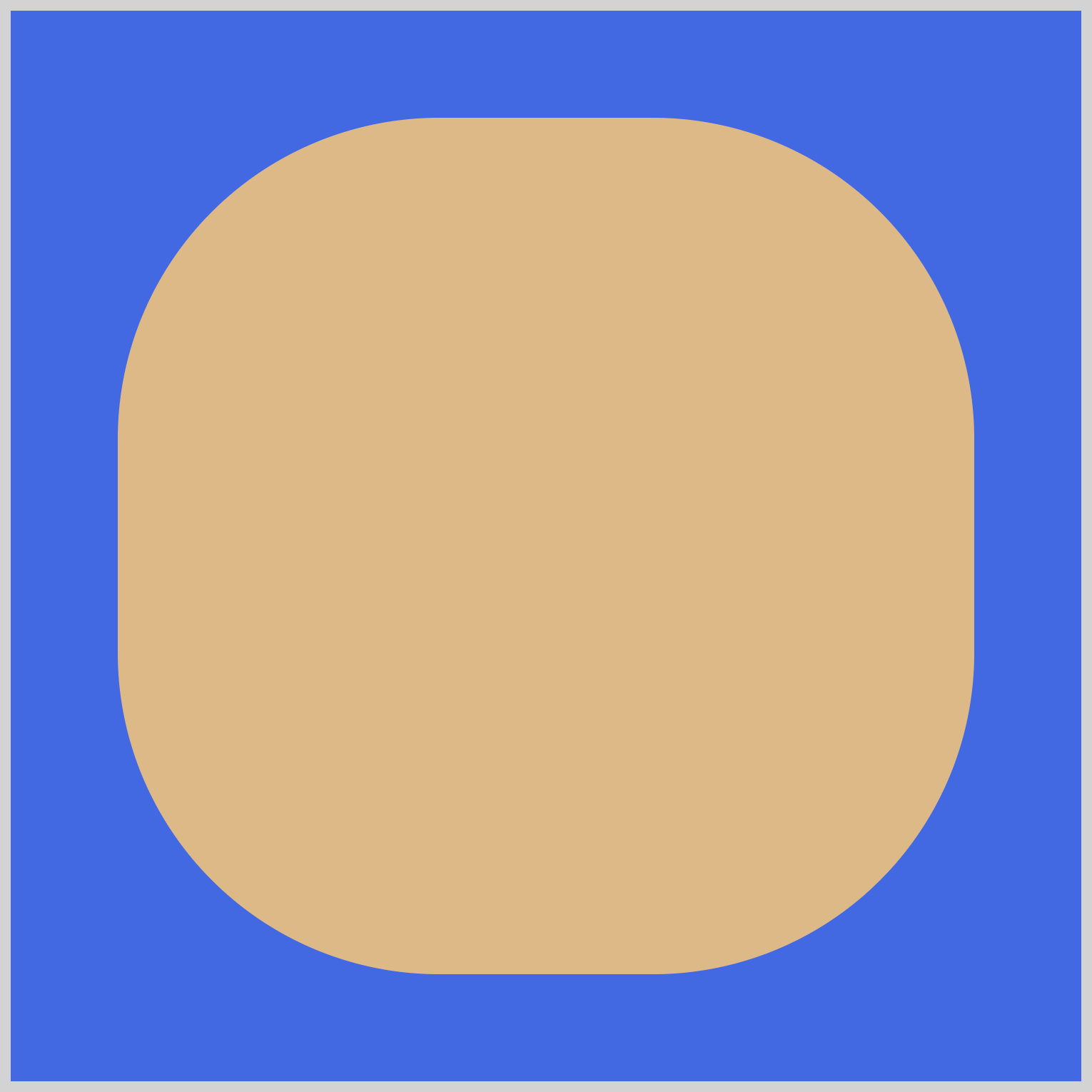

border-radius at 37.5%
border-radius at 37.5%
/* Circle with Steps Animation */
@keyframes circle-with-steps {
  from {
  }

  80% {
    border-radius: 50%;
  }

  to {
    border-radius: 50%;
  }
}

The from state value will be left blank. This means that at the starting point of the animation, the element will have its default appearance. On the 80% intermediary step and the to state, you set the border-radius to 50%. This will transform the square into a circle by rounding all its corners.

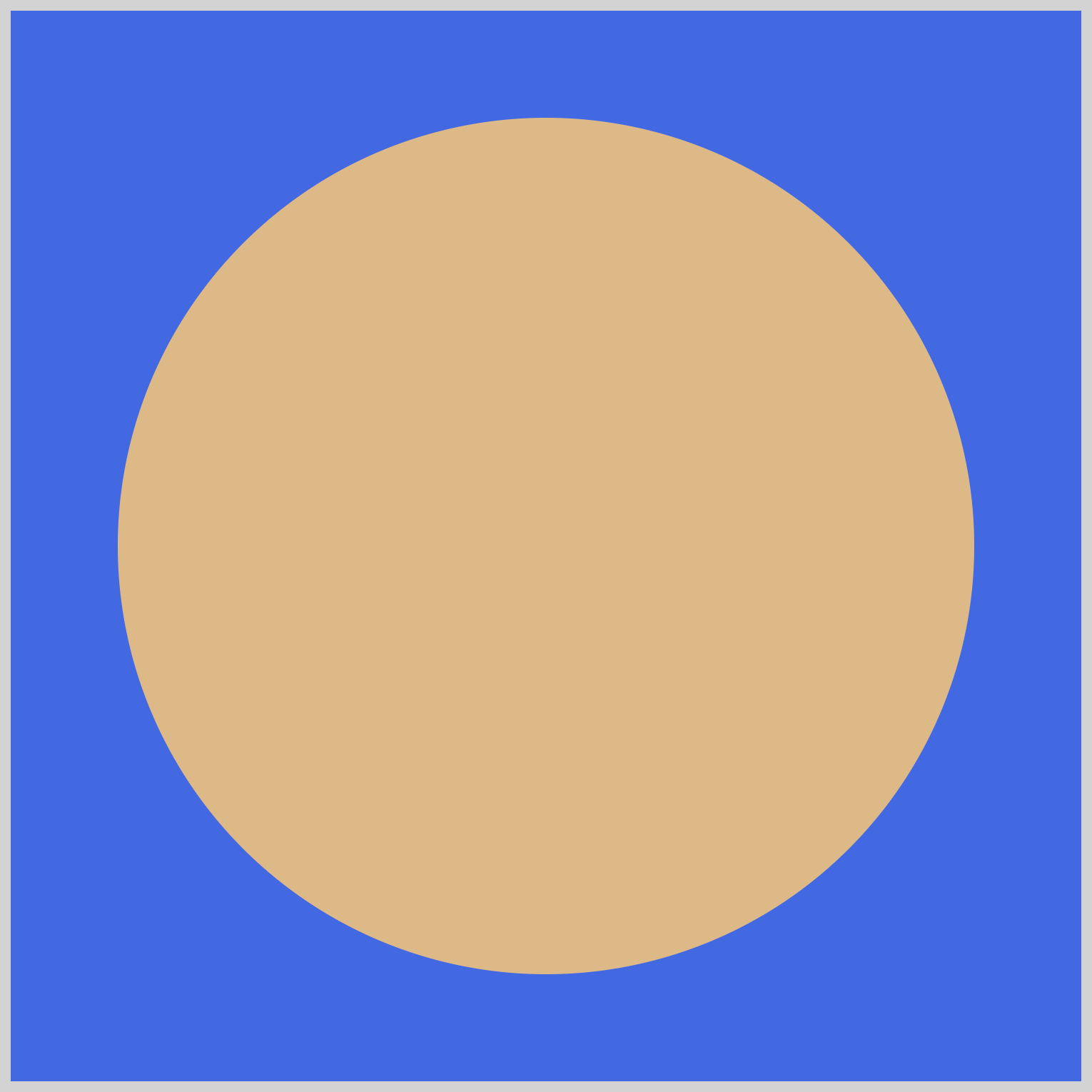

Circle - border-radius set to 50%
Circle - border-radius set to 50%

Now that you understand how the steps() function operates, let’s delve into a multi-step animation in the following section.

Multi-Step Shape Animation

Let’s wrap up this article with a multi-step shape animation example using the steps() function. The animation will rotate between diamond, circle, ellipse, and teardrop shapes.

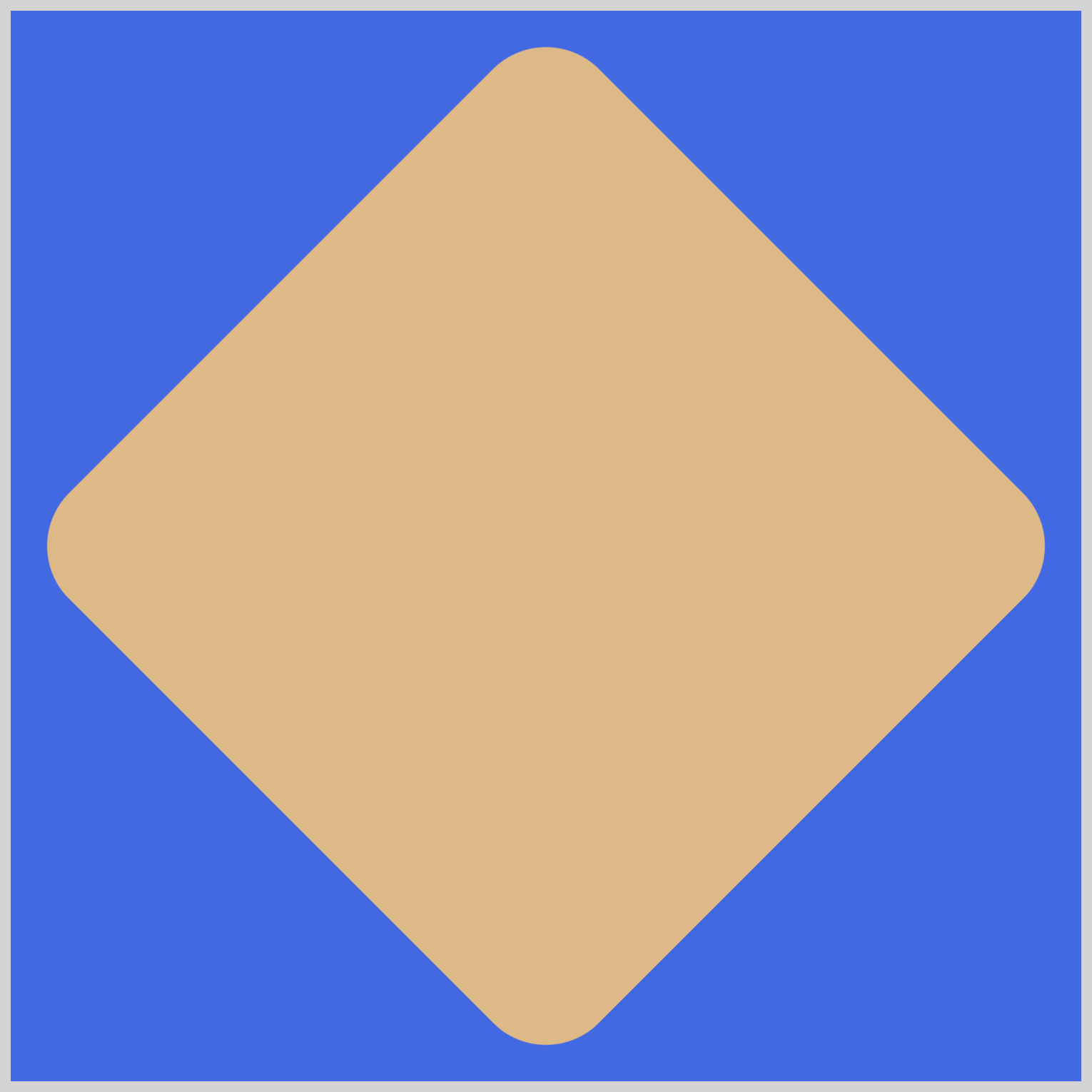

Multi-Step Animation - Diamond
Multi-Step Animation - Diamond
/* Shape */
.shape {
  position: absolute;
  background-color: burlywood;
  width: 350px;
  height: 350px;
  rotate: 45deg;
  border-radius: 10%;
}

The initial shape will be a diamond. We make the diamond shape by rotating the square 45 degrees using the CSS rotate property and setting its border-radius value to 10%.

.shape {
  animation: shape 3s steps(1) infinite;
}

The steps() function value is set to 1. This value instructs the browser to jump directly to the next stop, in this case, 25%, 50%, and so on, without creating any intermediary tween images between the stops.

/* Shape Animation */
@keyframes shape {
  from {
  }

  /* Stops or steps inserted between from and to state */

  to {
    border-radius: 140px 140px 140px 30px;
  }
}

Using the CSS @keyframes at-rule, you’ll insert the circle, ellipse, and teardrop shapes.

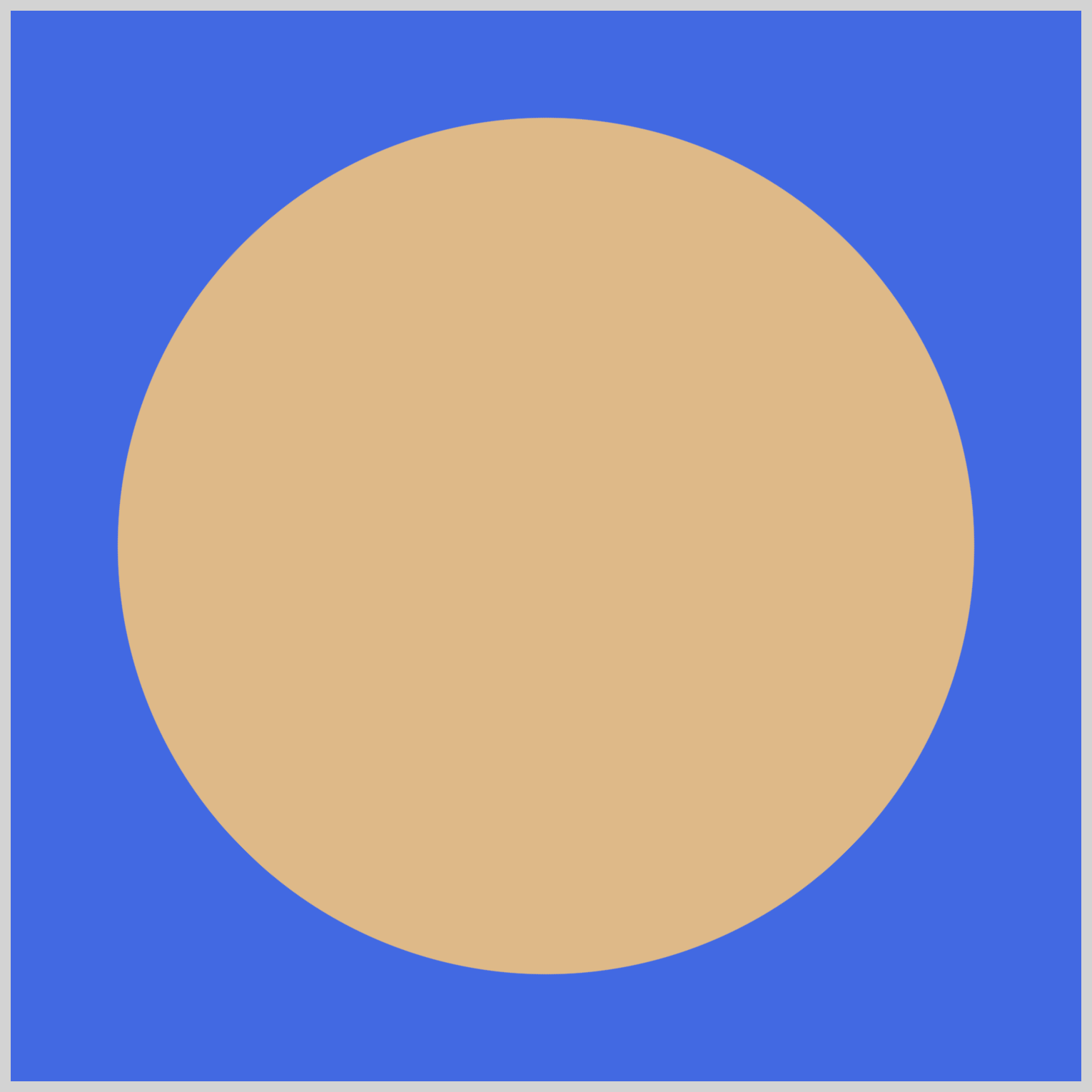

Multi-Step Animation - Circle
Multi-Step Animation - Circle
@keyframes shape {
  25% {
    border-radius: 50%;
    width: 400px;
    height: 400px;
  }
}

You fully round out the square corners using border-radius: 50% and increase the shape size from 350px to 400px so that the circle matches the diamond shape size.

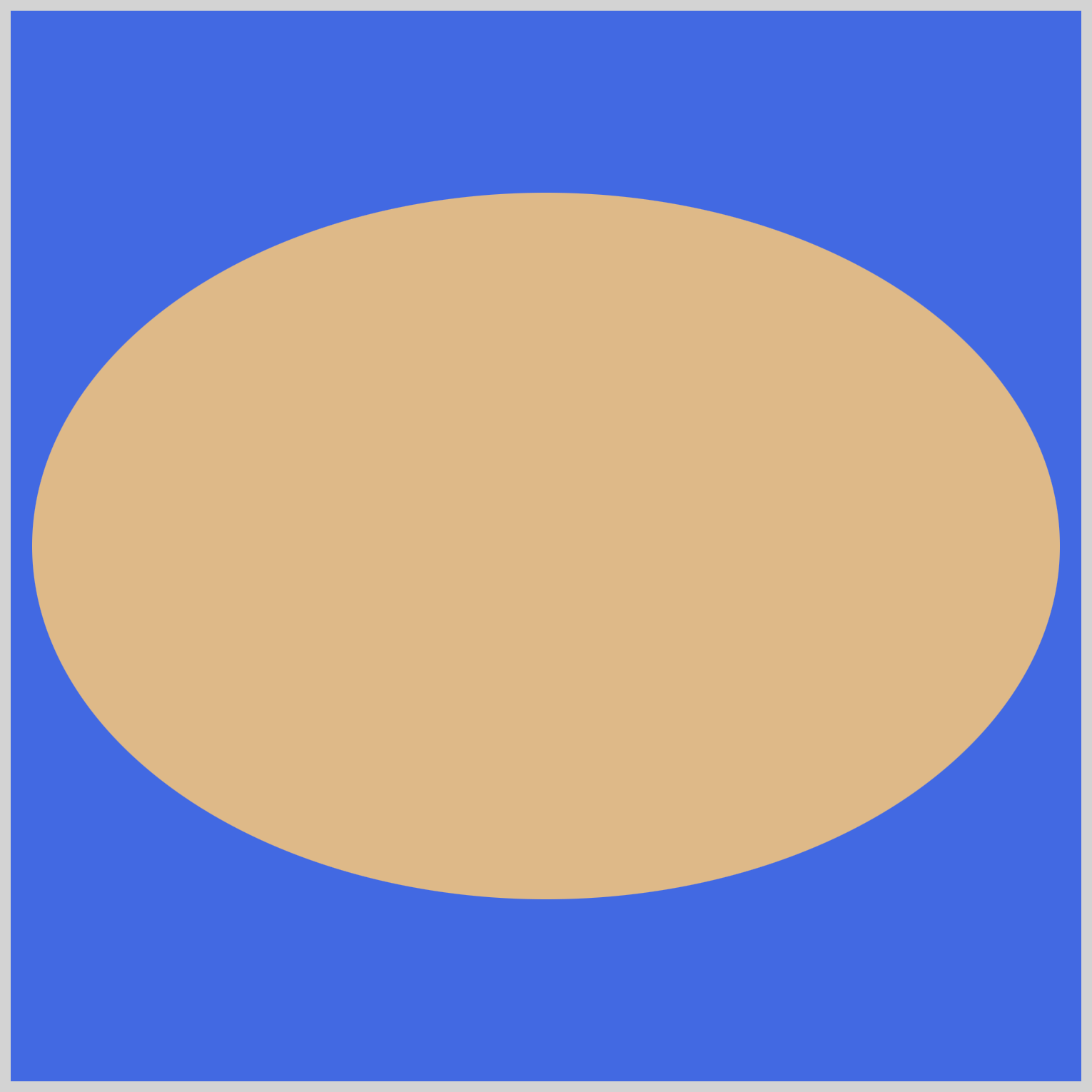

Multi-Step Animation - Ellipse
Multi-Step Animation - Ellipse
@keyframes shape {
  50% {
    height: 330px;
    width: 480px;
    rotate: 0deg;
  }
}

To create the ellipse, set the height property value to 330px and the width to 480px. Additionally, rotate the shape to 0 degrees to ensure the ellipse is displayed horizontally.

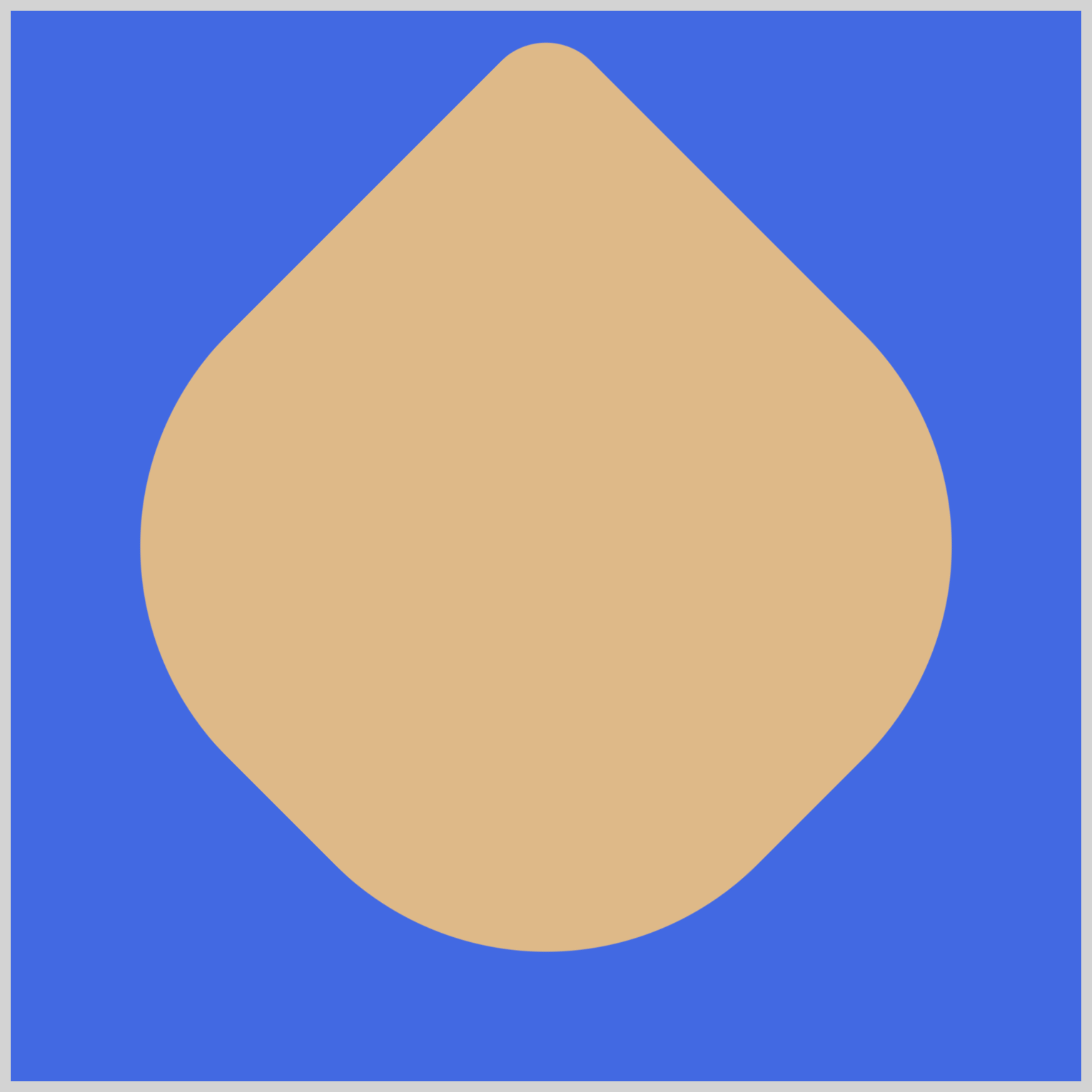

Multi-Step Animation - Teardrop
Multi-Step Animation - Teardrop
@keyframes shape {
  75% {
    border-radius: 140px 140px 140px 30px;
    height: 350px;
    width: 350px;
    rotate: 135deg;
  }
}

For the final teardrop shape, set the border-radius property value to 140px 140px 140px 30px. Set the height and width to its original size of 350px and rotate it 135 degrees.

You can see and play with the complete code on Pyxofy’s CodePen page.

See the Pen steps() Function Multi-Step Animation by Pyxofy (@pyxofy) on CodePen.

Conclusion

In this article, you learned the basics of step animation and explored the difference between keyframes and in-betweens. You learned the mechanics behind the CSS steps() animation function and how to use it to make multi-step animation.

By combining multiple CSS properties such as @keyframes, animation, and border-radius, you created a multi-shape animation sequence that transitions between a diamond, circle, ellipse, and teardrop shape.

Play around with steps() and make fascinating short or long step animations. Share your masterpiece with us on LinkedIn, Threads, Mastodon, X (Twitter) @pyxofy, or Facebook.

We hope you liked this article. Kindly share it with your network. We appreciate it.
